SF DeFacto #1 — Salesforce Headless Commerce Checkout with Saved Payment Method

Context

This article showcases how to implement Commerce Checkout (Cart-to-Order) in a headless context using a combination of B2B and D2C Commerce, Salesforce Payments, and Salesforce Commerce Payments APIs.

This niche use case may be necessary if the following business requirements apply:

• Implement a headless checkout process (not relying on store managed checkout).
• Use a saved payment method instead of capturing payment details during checkout.

Notes

• A fully headless checkout with Salesforce Payments is not yet officially supported by Salesforce. This implementation presents a suggested solution based on personal experience with the Salesforce Payments capabilities.

Prerequisites

• Watch Salesforce Mojo’s video about Headless Commerce Checkout.
• Salesforce Payments must be configured in the org with a valid Merchant Account and associated Payment Method Sets.
• Set up Postman with the required authentication details for the external store user.
• This process assumes that an active cart with existing Cart Item records already exists.

Postman Collection

Import the following collection to access the APIs mentioned in this solution: Headless Commerce APIs.postman_collection.json.

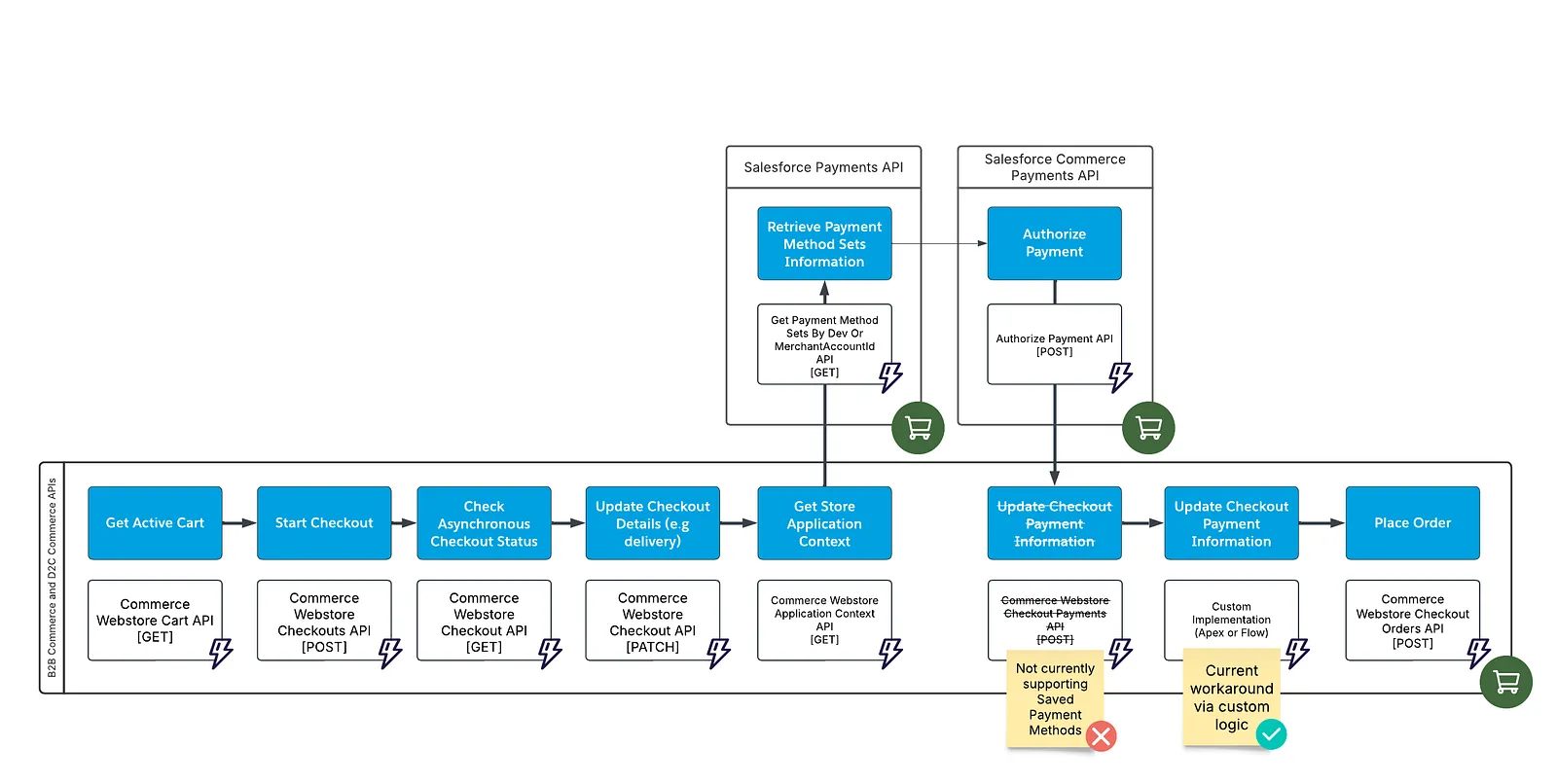

Headless Commerce Checkout Process with Saved Payment Method (Salesforce Payments)

The following flow outlines the sequence of processes and API calls required to create an order from a cart. As mentioned in the notes section, the flow is not fully API-driven. Custom logic is introduced as a workaround after authorizing payment. This is necessary because the checkouts/active/payments API does not yet support Saved Payment Method records.

1. Get Active Cart — GET Commerce Webstore Cart
2. Start Checkout — POST Commerce Webstore Checkouts
3. Check Asynchronous Checkout Status — GET Commerce Webstore Checkout
   • During the asynchronous checkout process (e.g., calculating shipping, taxes, promotions), GET requests return a 202 status. When processing is complete, requests return a 200 status with up-to-date data.
4. Update Checkout Details — PATCH Commerce Webstore Checkout
   • Must include data for only one sub-resource per call, such as contact information, shipping details, or delivery method.
5. Get Store Application Context — GET Commerce Webstore Application Context
   • Goal is to retrieve the paymentMethodSetDevName.
6. Retrieve Payment Method Sets Information — GET Get Payment Method Sets By Dev Or MerchantAccountId
   • Extra permissions: Authenticated Payer permission set.
   • Goal is to retrieve the gatewayId.
7. Authorize Payment — POST Authorize Payment
   • paymentGroup.sourceObjectId can be empty, as it will be populated after the order is placed. paymentMethod.id references the Saved Payment Method ID.
8. Update Checkout Payment Information — custom logic
   • Extra permissions: custom WebCart permissions.
   • Custom logic updates WebCart.PaymentMethodId and WebCart.PaymentGroupId. These fields may not be updatable by external users due to license/sharing restrictions. Options for implementation include Composite API, Flows, or Apex.
9. Place Order — POST Commerce Webstore Checkout Orders

Additional Resources

• Commerce B2B and D2C Resources
• Salesforce Payments API
• Commerce Payments API
• Salesforce Mojo Headless Commerce APIs
